TAPES FOR MASKING APPLICATIONS

MaskingElite Tape offers a full line of options for masking in all Industrial Coating applications. We stock top of the line high temperature Polyesters, Polyimides and Glass Cloth Tapes ranging 425F-500F temps with complete clean removal during Powder Coating, Flame Spray & Ceramic Coating and Circuit board assembly.

Elite’s offering for tapes used in Plating & Anodizing applications include Aluminum & Lead Foil tapes, Vinyl tapes with and without adhesive that can withstand harsh chemicals and remove clean. Elite’s Paper Masking Tape line will cover temperatures ranging from 150F – 300F for all of your Painting applications.

Elite Tape Part #


Description

For Use On

Adhesion

Temp. Resistance

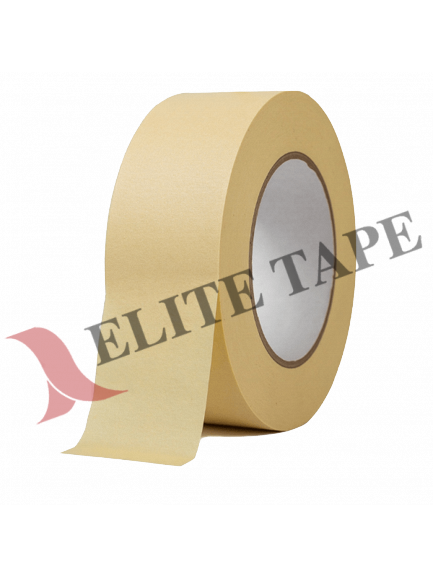

7.3 Mil. fine crepe paper backing

325F for 30 min. *Clean removal from a variety of surfaces

28oz/1"

325F

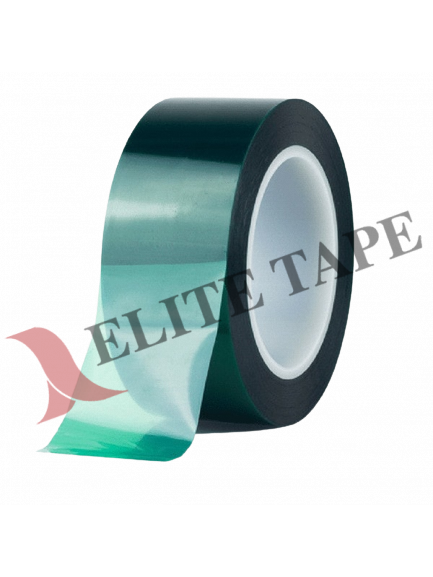

3.8 Mil Green PET Silicone

3.8 Mil Green PET Silicone

*428F for 20min.
*Clean Removal from metals, wood, glass & plastic

35oz/1"

428F

2.8 Mil Polyester Silicone

*Clean Removal

*Quick Bond

* Resists Fumes & Chemicals

*Tabbing & Bag Sealing

*Masking Off in Powder Coating & Platers tape

* Splicing Silicone Coated Liners & Films

36oz./1”

428F

2.8 Mil Blue PET Silicone

2.8 Mil Blue PET Silicone

*428F for 20min. *Clean Removal from metals, wood, glass & plastic

35oz/1"

428F

2.8 Mil Red PET Silicone

2.8 Mil Red PET Silicone

*428F for 20min.

*Clean Removal from metals, wood, glass & plastic.

35oz/1"

428F

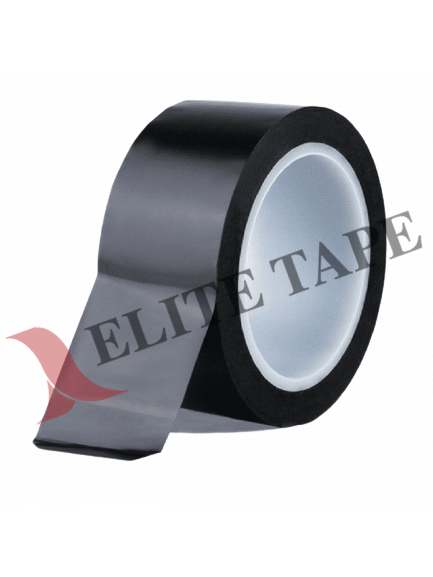

2.8 Mil "Opaque Black" Polyester Silicone

*Pressure Sensitive Label Manufacturing, Adhesive Coating, Casting & Laminating
*LSE Plastics, Artificial & Varnished Leathers
*Opaque Black for easy identification

35oz/1"

428F

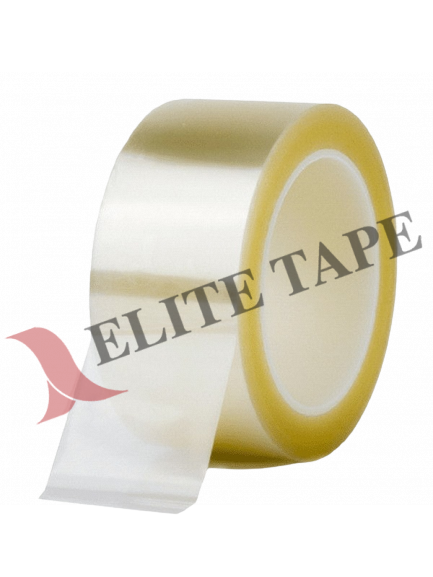

2.8 Mil Clear Polyester Silicone

*Silicone Coated Papers, Films, Foils & Non-Wovens
*Pressure Sensitive Label Manufacturing, Adhesive Coating, Casting & Laminating
*High Temperature resistance 428F
*Flexible Thin Carrier

35oz/1"

428F

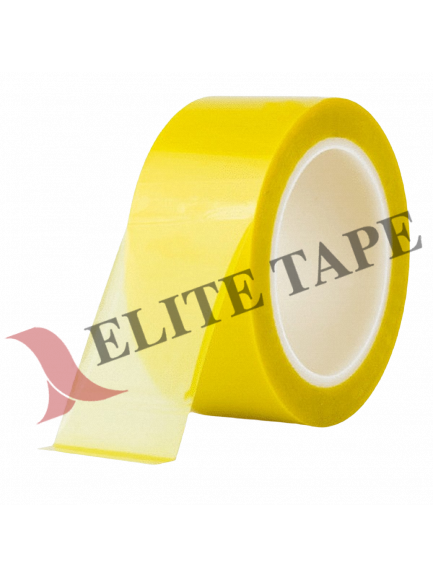

2.8 Mil Yellow Polyester Silicone

*Silicone Coated Papers, Films, Foils & Non-Wovens
*Pressure Sensitive Label Manufacturing, Adhesive Coating, Casting & Laminating
*High Temperature resistance 428F
*Flexible Thin Carrier
*Yellow for easy identification

35oz/1"

428F

2.0 Mil Amber Polyimide Silicone

2.0 Mil Amber Polyimide Silicone

*500F for 1hr.
*Extended temperatures & Dielectric Strength

25oz/1"

500F

3.0 Mil Amber Polyimide Silicone

3.0 Mil Amber Polyimide Silicone

*500F for 1hr.
*Extended temperatures & Dielectric Strength

25oz/1"

500F

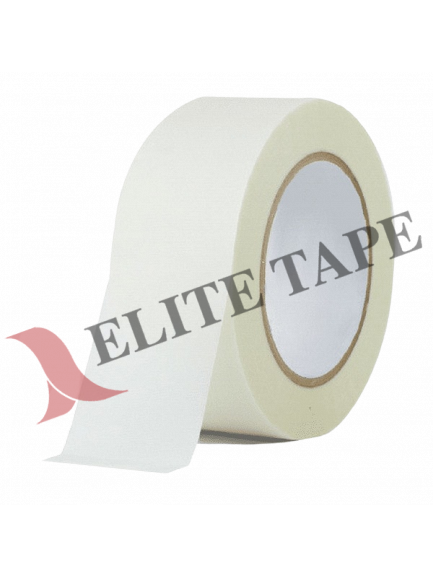

7.5 Mil White Fiberglass Silicone

7.5 Mil White Fiberglass Silicone

*400F Continuous
*Light Duty Flame spray and Ceramic Coating applications
*Two-Tone Powder Coating applications

59oz/1"

400F

7.5 Mil White Fiberglass Silicone

5.0 Mil. Fiberglass tape with 2.0 mil. Silicone

Bake Cycles 500F continuous and removes clean.

40 oz/1″

500F

20 Mil Silicone Rubber – No Adhesive - Colors

*Insulates up to 8000 Volts

* Airtight, Waterproof Seal

* Fuses Within 24 Hours

*Can Be Applied Underwater

*Low and High Temperature Resistant

*Alt. to Shrink Tubing

* UV & Salt Resistant

None

500F

Elite Tape Part #


Description

For Use On

Adhesion

Temp. Resistance

2.0 Mil Amber Polyimide Silicone

2.0 Mil Amber Polyimide Silicone

*Clean Removal from PCB Surface after solder reflow process
*Used in gold finger masking applications

25oz/1"

500F

3.0 Mil Amber Polyimide Silicone

3.0 Mil Amber Polyimide Silicone

*Clean Removal from PCB Surface after solder reflow process
*Used in gold finger masking applications

25oz/1"

500F

Elite Tape Part #


Description

For Use On

Adhesion

Temp. Resistance

5 Mil. Vinyl Rubber - Colors

5 Mil. Vinyl Rubber - Colors

*Solvent and chemical resistant

*Silicone Free

22oz/1"

175F

4 Mil. PET Modified Silicone

4 Mil. PET Modified Silicone

*Heavy adhesive reduces seepage and leaks

*High Tack Adhesive

35oz/1"

350F

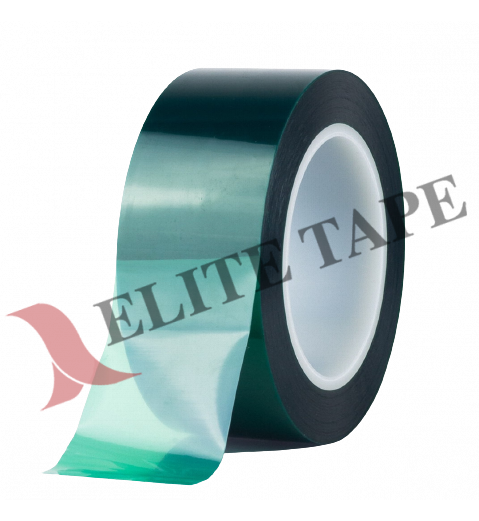

3.8 Mil. Green PET Silicone

3.8 Mil. Green PET Silicone

*General Purpose for Anodizing

35oz/1"

428F
6.0 Mil. Lead Foil Tape Acrylic Linered

6.0 Mil. Lead Foil Tape Acrylic Linered

*Electromagnetic & RF Field

*Masking in Plating

*Chemical Resistant

35oz/1"

275F

6.0 Mil. Lead Foil Tape Acrylic Linered

*Electromagnetic & RF Field

*Masking in Plating

*Chemical Resistant

60oz/1"

40F to 180F

5.0 Mil. Aluminum Foil Acrylic Linered

2.0 Mil. Aluminum Foil Acrylic Linered

*Heavy Duty Adhesive prevents leakage

60oz/1"

300F

3.5 Mil. Non-Adhesive Vinyl Tape

3.5 Mil. Non-Adhesive Vinyl Tape

*Self Clinging for wrapping

*No Adhesive

NA

175F

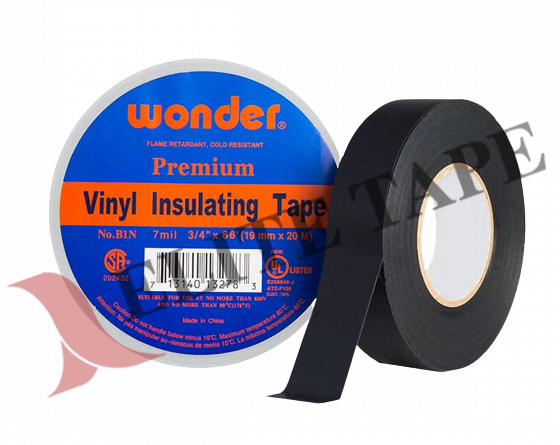

7.1 Mil PVC Vinyl -

Rubber

*Splicing Wires and Cables for Electrical Insulation

*Wire Harness Strapping

18.6oz./1”

221F

Elite Tape Part #


Description

For Use On

Adhesion

Temp. Resistance

7.3 Mil. High Temp, Heavy Duty Crepe Rubber

7.3 Mil. High Temp, Heavy Duty Crepe Rubber

*325F 30min. from a variety of surfaces

*Hot, Warm or Cold Removal
*Clean Removal from metals, wood, glass & plastic
*Automotive, Truck, Bus & Marine

28oz/1"

325F

5.4 Mil Crepe Yellow Paper Rubber

* Paint Masking Automotive, Aerospace & Industrial

*Adheres to Rubber, Plastic, Wood, Concrete, Metal & Painted Surfaces

*Book Binding

*Residue-Free

*26lb Tensile Strength

30oz/1"

225F (Short Term)

6.4 Mil. Medium Grade Crepe Rubber

6.4 Mil. Medium Grade Crepe Rubber

*Air Dry Wet Paint Applications no bake cycle

*Resistant to Water, Solvents & Oils

39oz/1"

200F

4.8 Mil. Printable General Purpose Crepe Rubber

4.8 Mil. Printable General Purpose Crepe Rubber

*Printable Topside

42oz/1"

150F

Elite Tape Part #


Description

For Use On

Adhesion

Temp. Resistance

5.3 Mil. UV Resistant Crepe Rubber

5.3 Mil. UV Resistant Crepe Rubber

*Clean Removal after 14days
*Painted Walls, Glass, Vinyl, Metal & Wood

32oz/1"

200F

5.9 Mil. UV Resistant Crepe Rubber

5.9 Mil. UV Resistant Crepe Rubber

*Clean Removal after 8days
*Lacquer, Polyethylene Coated, Unfinished Wood & Wallpaper

22oz/1"

150F

Elite Tape Part #


Description

For Use On

Adhesion

Temp. Resistance

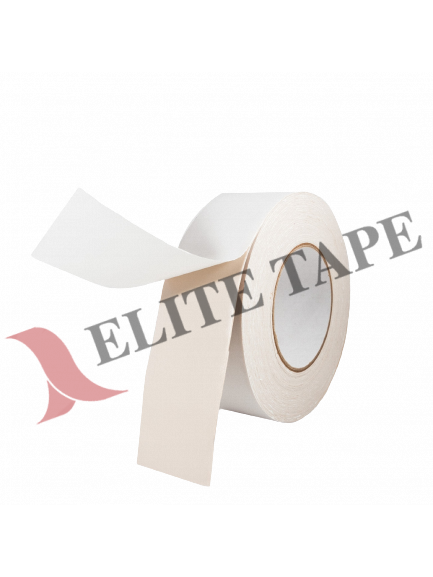

45 Mil Rubber-

Acrylic -

White Liner

*Conforms to Irregular Surfaces

*Masking Dry Strip Paint Removal

*Masking Shot Peen Aerospace, Industrial & Automotive

*Masking on Concrete, Granite and Quartz

*Prevents Damage of Sensitive Surfaces

30oz./1”

175F
